ID # 38949404

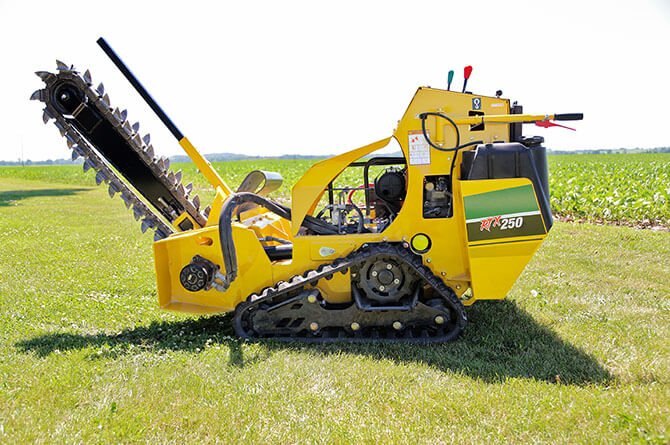

TRENCHER - 6" W X 48" D WALK BEHIND
In Stock
Half Day: $$205.00
Day: $205.00
Weekend: $277.50
Week: $820.00
Month: $2460.00
Overview
Specifications
Specifications
-
General Dimensions and Weights
- Length79 in
- Width34.5 in
- Height48 in
- Weight1550 lbs
-
Engine - Option one
- Make and ModelKohler Command PRO ECH740
- Fuel TypeGas
- Gross Horsepower25 hp
- Horsepower at Maximum RPM (Gross)25 hp
- Displacement45 cu-in
- Number of Cylinders2
- Cooling MediumForced air
- Maximum Operating Angle (Fore/Aft)*25 deg
- Maximum Operating Angle (Left/Right)*25 deg
- AspirationNatural
-
Hydraulic System
- Attachment Pump Relief Pressure (Trencher/Forward)2975 psi
- Ground Drive Pump Relief Pressure Forward/Reverse2900 psi
- Ground Drive Pump gpm at Maximum Engine RPM11.4 gpm
- Hydraulic Supply Filter Rating10 micron nominal
- Attachment Pump gpm at Maximum Engine RPM16.1 gpm
- Hydraulic Return Filter Rating10 micron nominal
-
Capacities
- Fuel Tank6.8 gal
- Hydraulic Tank8 gal
- Hydraulic System8.5 gal
- Engine Oil.5 gal
-
Ground Drive
- Ground Drive TypeHydrostatic
- Maximum Forward Transport Speed at Full Throttle3.5 mph
- Maximum Reverse Transport Speed at Full Throttle2.5 mph
Model

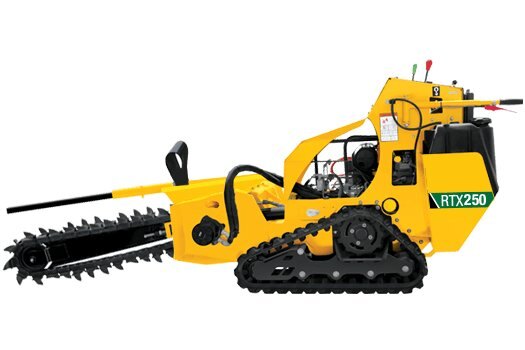

RTX250 Pedestrian Trencher
Category Name
Excavating
Manufacturer
VERMEER
Model
RTX250 Pedestrian Trencher
Category Name
Excavating
Manufacturer
VERMEER
Quantity
1
