Power Screed w/8', 10' or 12' beam

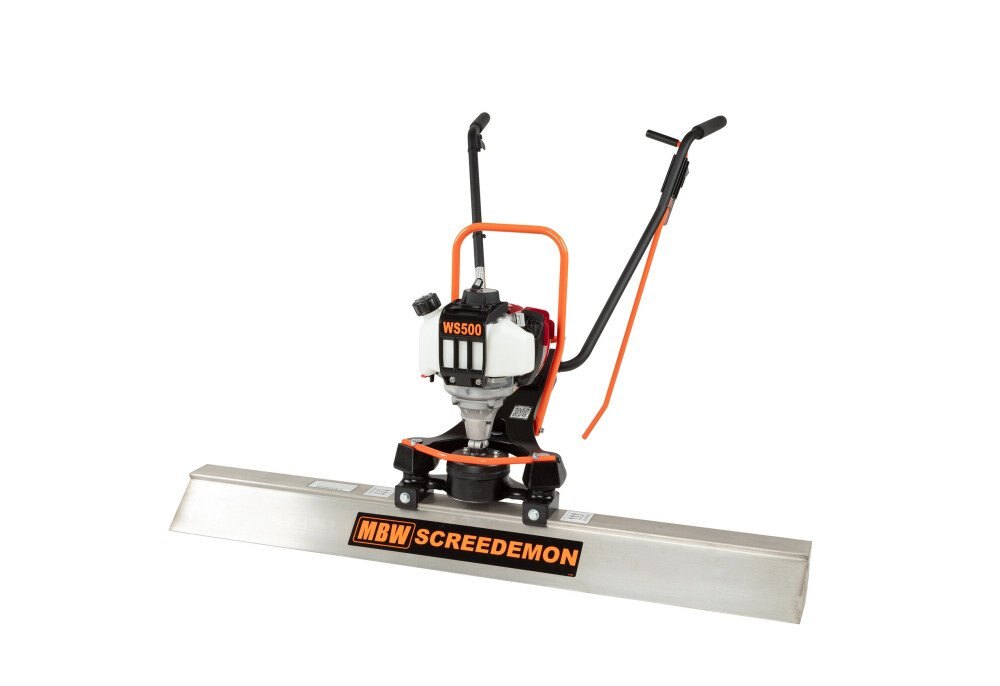

MBW ScreeDemon™ Vibratory Wet Screed Specifications

General:
- Type: Portable vibratory wet screed
- Brand: MBW, Inc.
- Model Series: ScreeDemon™ / WS500 series
- Application: Concrete finishing — flattening and consolidating freshly placed concrete

Power & Drive:
- Power Options:
  • Honda GX35 gasoline engine
- Max Rated Power (gas model): ~1.5 hp (1.12 kW) @ 7000 rpm (Honda GX35)


Performance & Vibration:
- Vibratory Action: Vibrates screed bar to level and settle concrete
- Hand/Arm Vibration Reduction: ~50 %–90 % lower than typical mechanical screeds (patented drive isolators)

Construction:
- Frame: E‑coated aluminum or magnesium components for portability and durability
- Central Lifting Point: Single balanced lifting location for easier handling}
- Quick‑attach screed bar clamp (no bolts through the bar)

Screed Bar Compatibility:
- Compatible with magnesium screed bars in increments (examples):


  • 8 ft / ~2.44 m – ~16.1 lb
  • 10 ft / ~3.05 m – ~20.1 lb
  • 12 ft / ~3.66 m – ~24.0 lb


Dimensions & Weight:
- Operating Weight (battery model): ~33.5 lb (15.2 kg) including battery

Features & Benefits:
- Low maintenance flexible coupler and sealed exciter design (no complex drive cables)
- Lower hand/arm vibration levels increase user comfort and safety
- Fast assembly/disassembly for transport and cleaning
- Suitable for walk‑behind leveling of wet concrete with screed bars up to ~18 ft long
